| Model NO. | Customized |

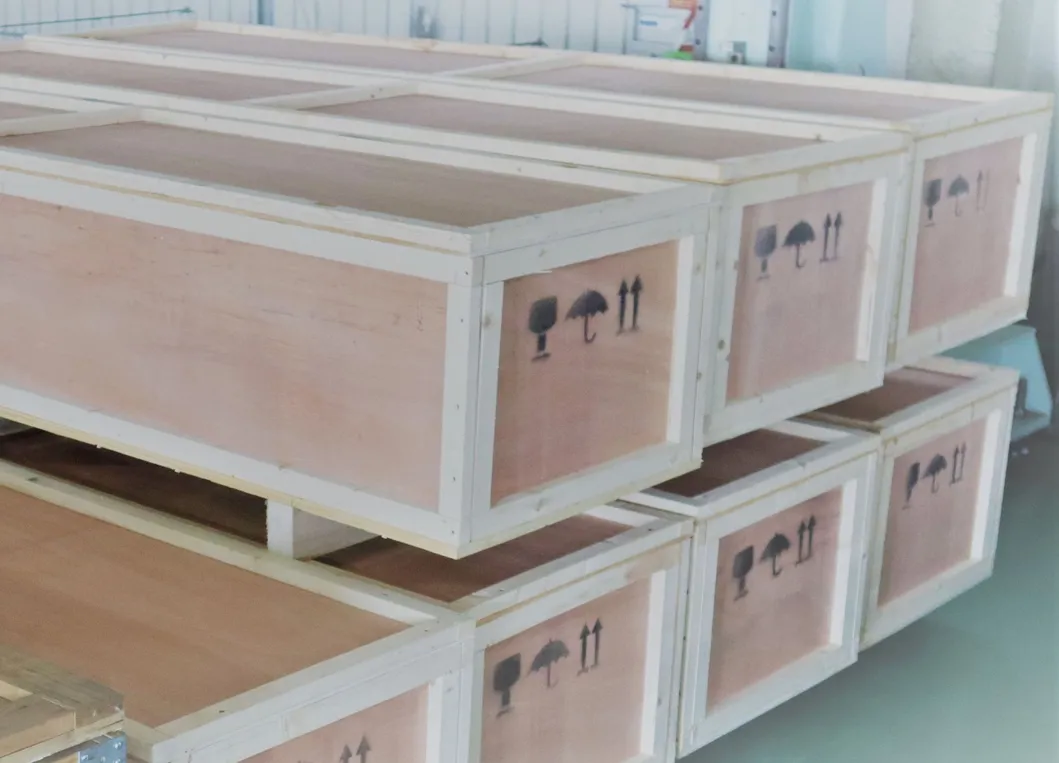

| Transport Package | Wood Package |
| Specification | Customizable |
| Origin | China |
| HS Code | 8108903290 |
| Production Capacity | 1000/30 Days |

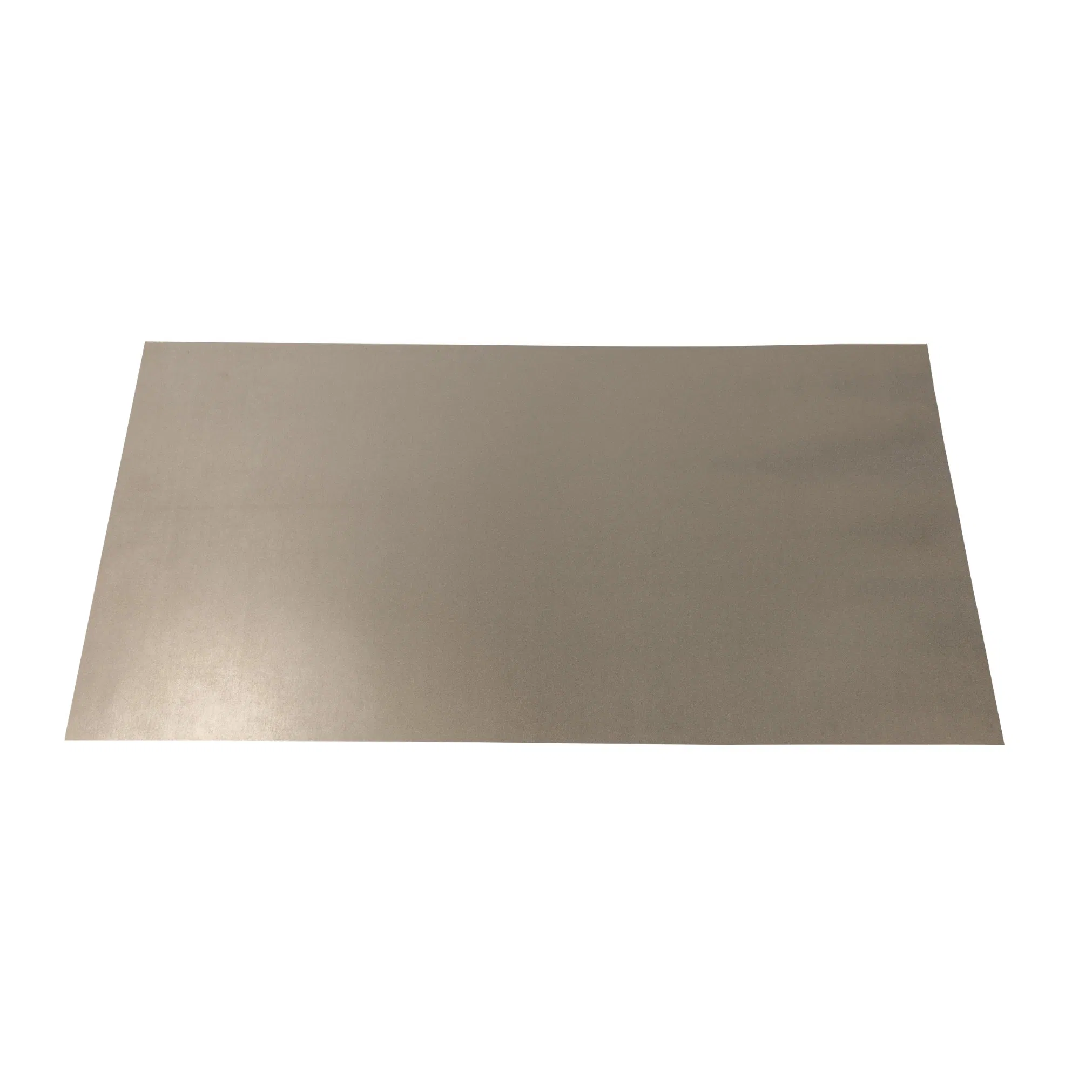

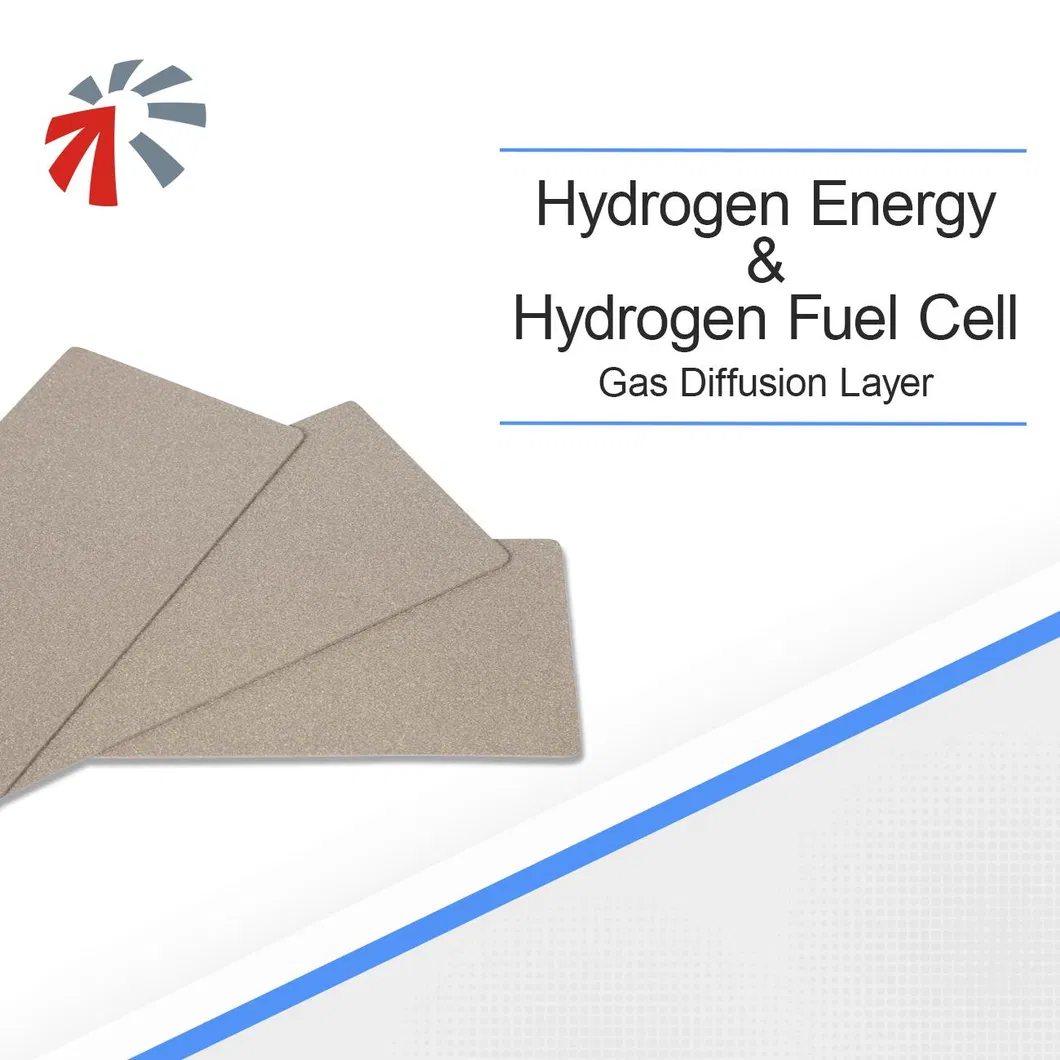

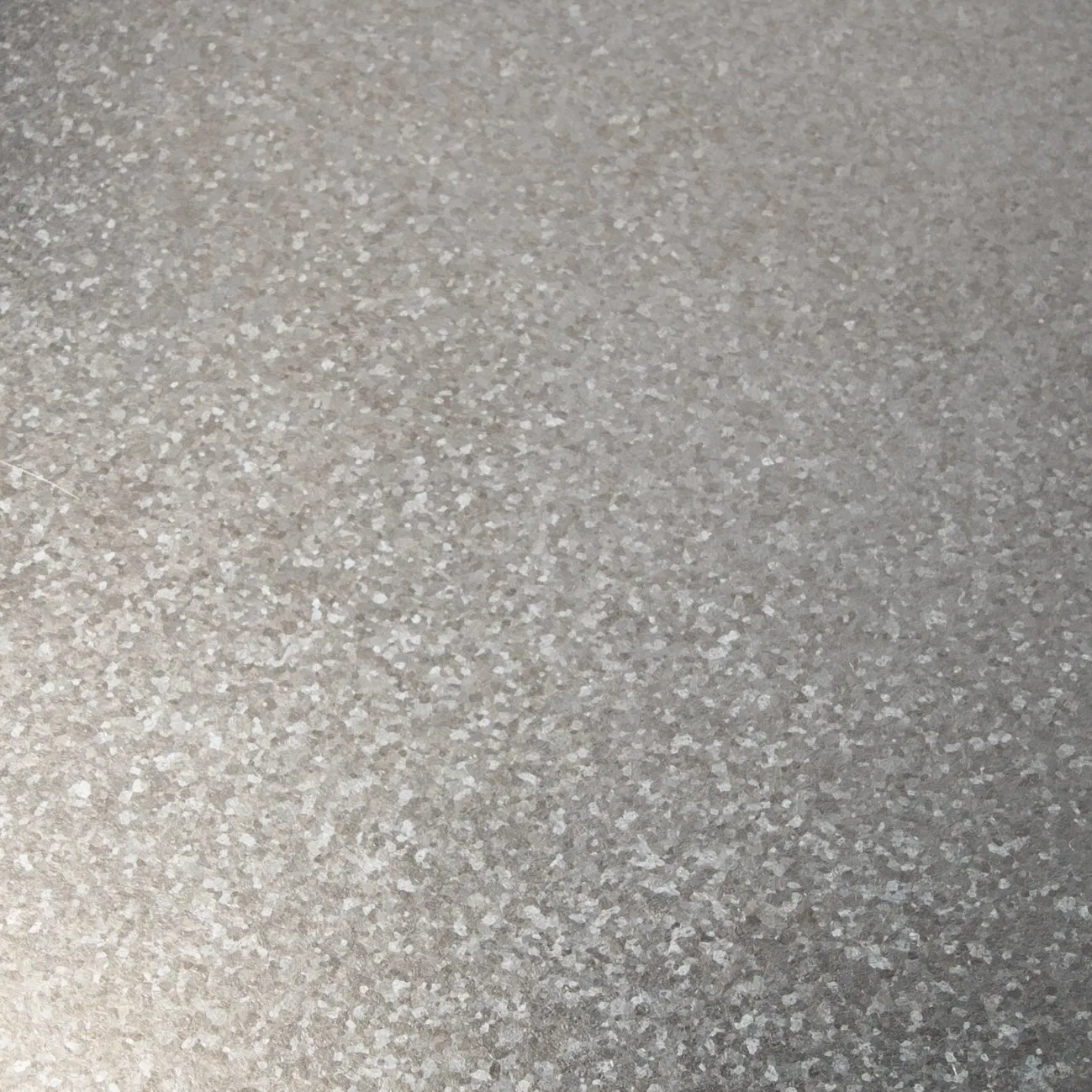

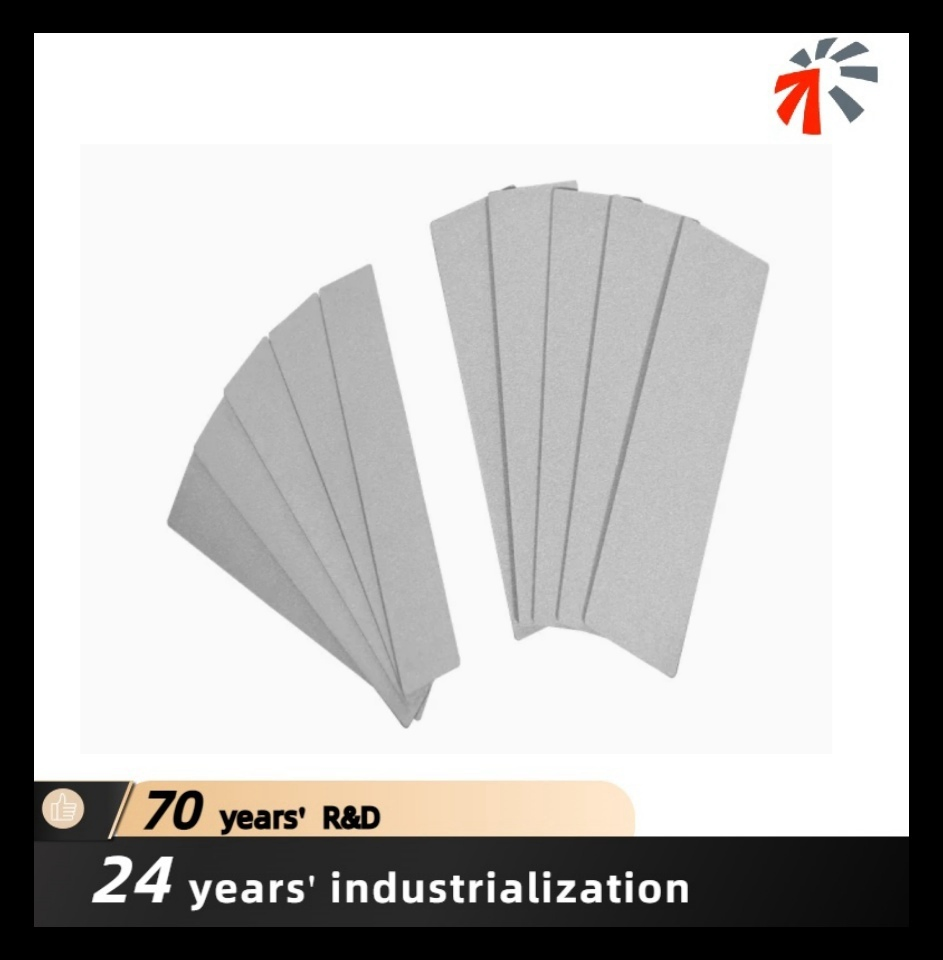

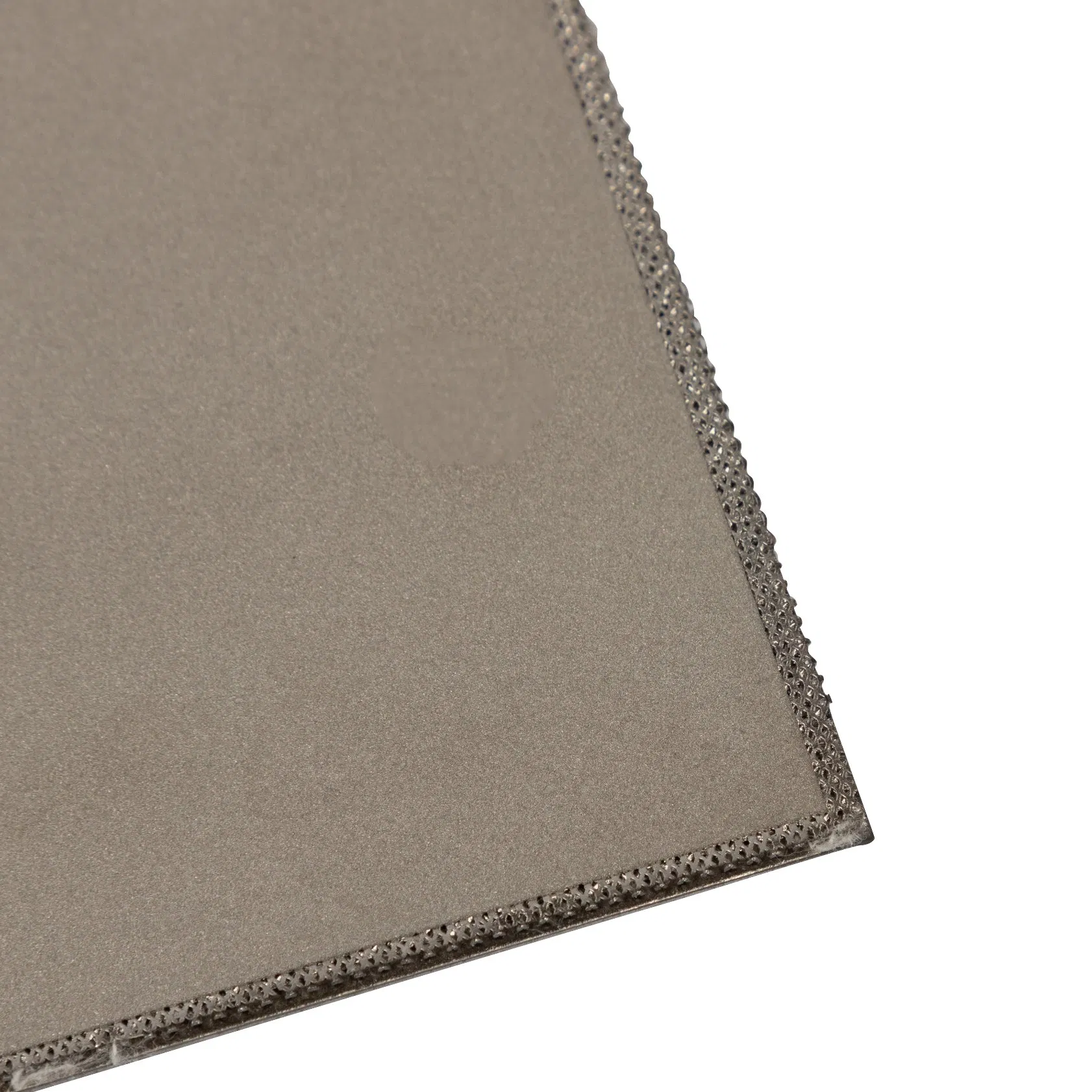

The Gas Diffusion Layer is a key material for the PEM electrolyzer, ensuring the effective transmission of liquid and produced gas between the membrane electrode and the bipolar plate.

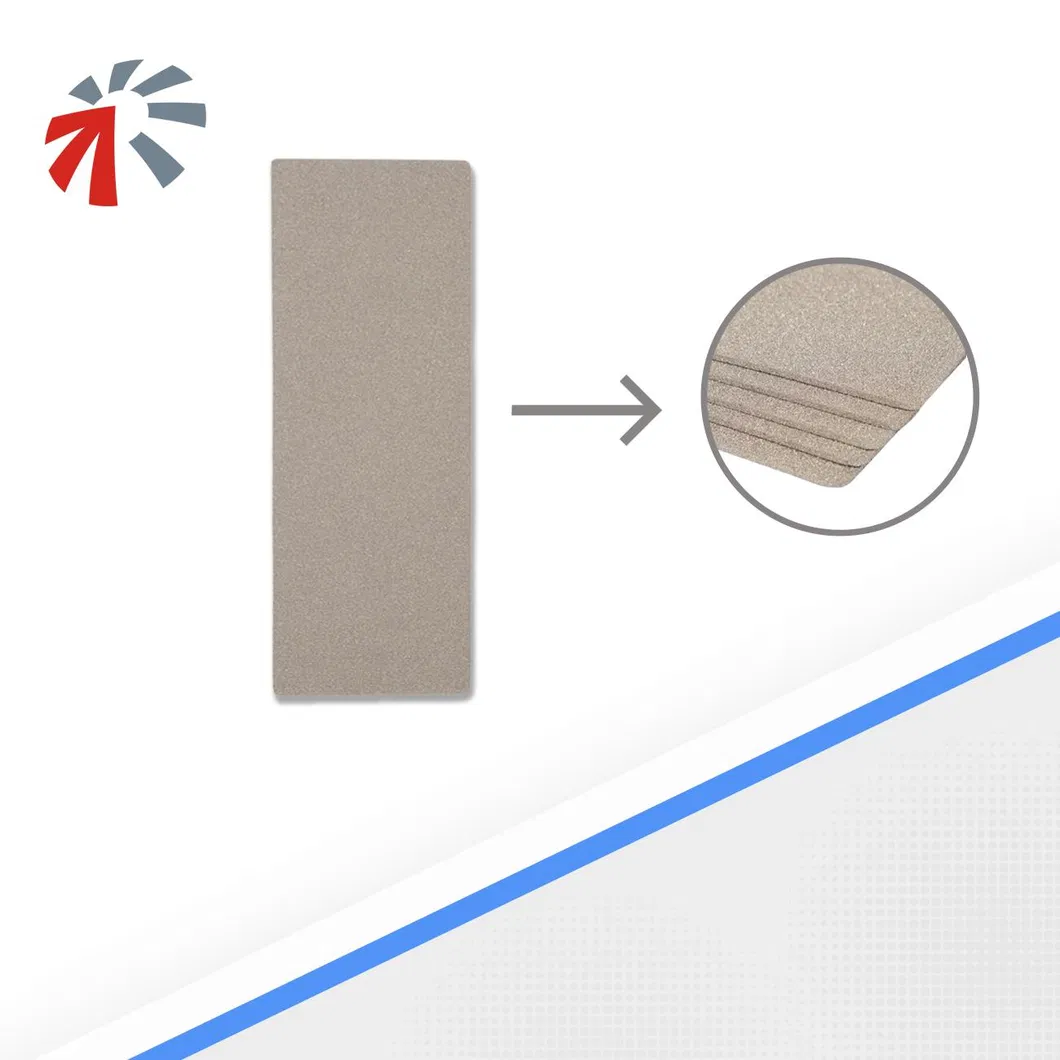

Gas diffusion layers are tailored specifically for membrane electrode assemblies, providing the best performance in mass transport, conductivity, and materials compatibility. Our porous sheet, the key component of the gas diffusion layer, is customized for porosity, thickness, and rigid contact surface to suit your needs.
Process Flow: Mesh + Sintered Layer + Plate > Pressure Sintering > Surface Treatment > Gas Diffusion Layer
| Processing Technology | Pressure Sintering |
| Material | Ti (Titanium) |
| Width | Up to 300 mm |
| Length | Up to 650 mm |
| Thickness | 2-3 mm |
| Pore size | 10-20um |
| Porosity | 35%-45% |
| Permeability | >5.0E-04L/Pa*min*cm² |
We are a high-tech company engaged in energy cleaning utilization and clean energy technology. Our focus is on providing advanced solutions for industrial filtration and hydrogen energy sectors.
