Ti Plate with Gas Diffusion Layer and Electrode for Fuel Cells

Customization:	Available
Material:	Titanium
Application:	Industry

Send Inquiry

Product Description

Basic Information

Model NO.	Customized Ti Filter Element	Type	Ti Filter
Filtration Grade	ULPA Filter	Pore Size	10-20um
Porosity	35%-45%	Thickness	2-3 mm
Width	up To 300mm	Length	up to 650 mm
Permeability	>5.0e-04L/PAMinCm2	Transport Package	Wood Package

Product Description

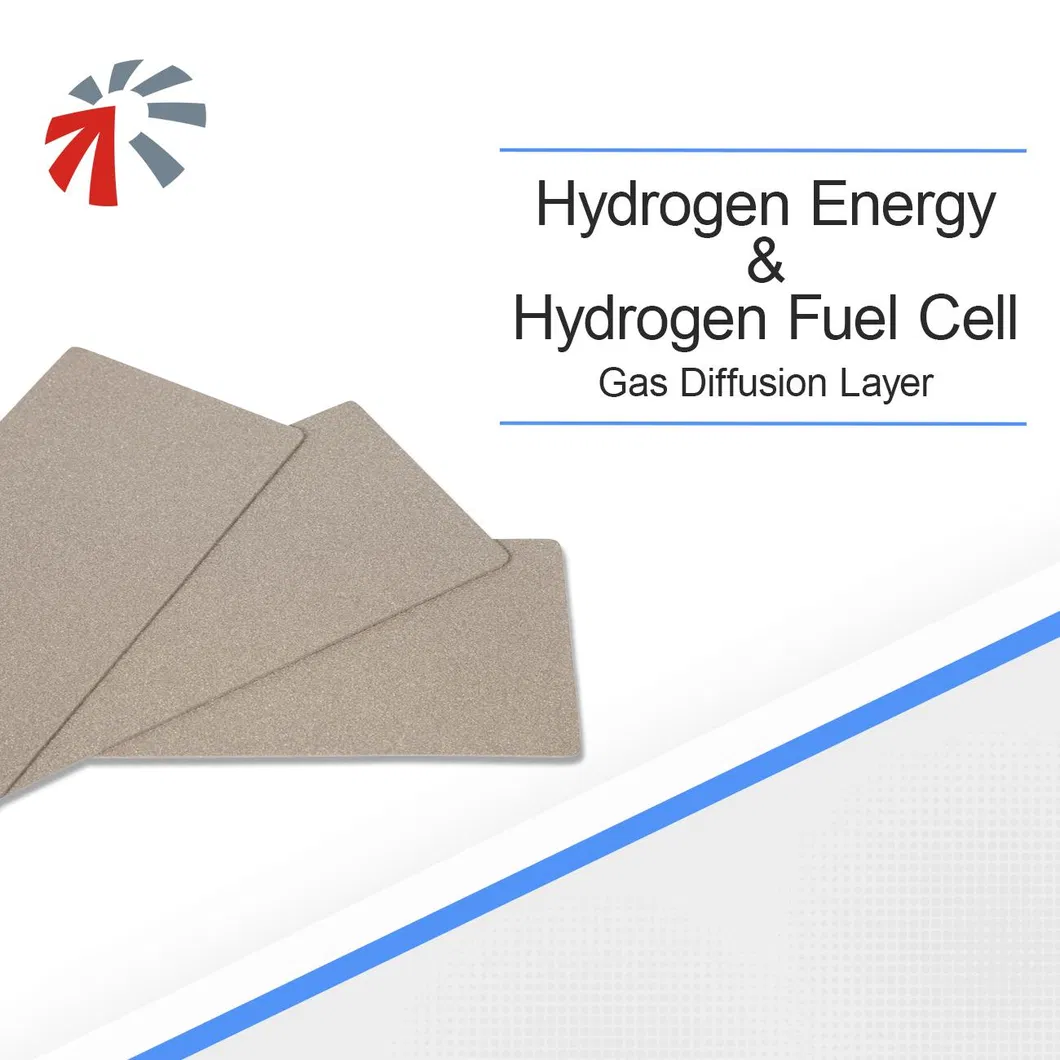

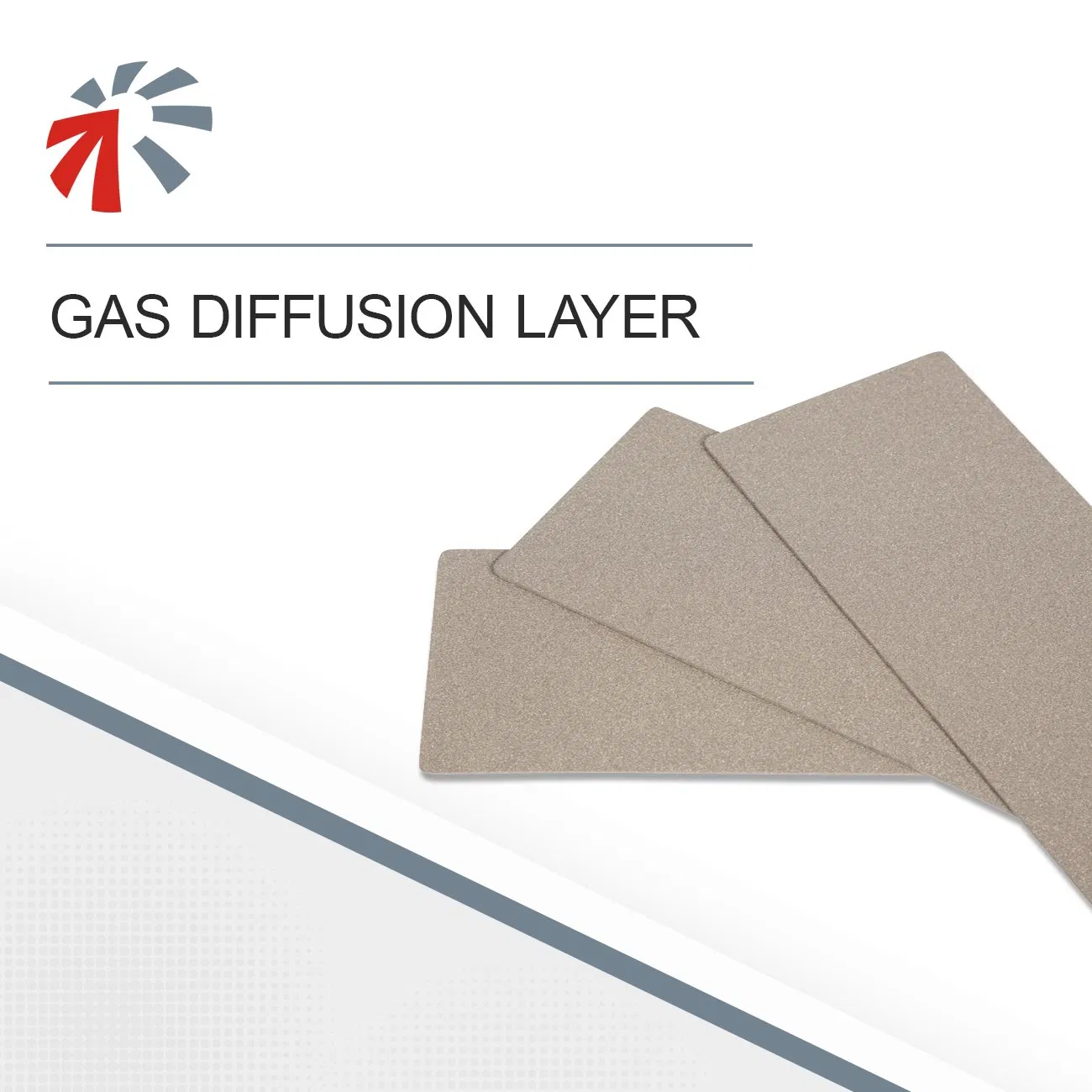

Gas Diffusion Layer is a critical material for PEM electrolyzers, facilitating the effective transmission of liquid and produced gas between the membrane electrode and the bipolar plate.

Tailored specifically for membrane electrode assemblies, these layers provide optimal mass transport, conductivity, and material compatibility. Our porous sheets feature customized porosity, thickness, and rigid contact surfaces to meet specific industrial requirements.

Key Feature	Benefit Description
High Corrosion Resistance	Titanium is inherently resistant to harsh chemical environments.
High Porosity	Enables efficient gas diffusion in electrolyzers and fuel cells.
Thermal Conductivity	Excellent heat transfer capabilities for thermal management.
Long Service Life	High durability reduces long-term maintenance and replacement costs.

Application & Usage Guidelines

✓ Sintered metal porous materials made via advanced powder rolling processes.
✓ Widely used in electronics, metallurgy, and water treatment industries.
✓ Optimal for hydrogen energy applications and catalytic activities.
✓ High temperature and acid-alkali resistance.

Notes for Use:

1. Handle with care to prevent scratches or physical damage; do not use tools directly on the filter surface.
2. Recommended filtration direction: Outside to inside.
3. Increase pressure slowly; do not exceed 2Mpa working pressure.
4. Perform backwashing when filtration efficiency drops below 50%.

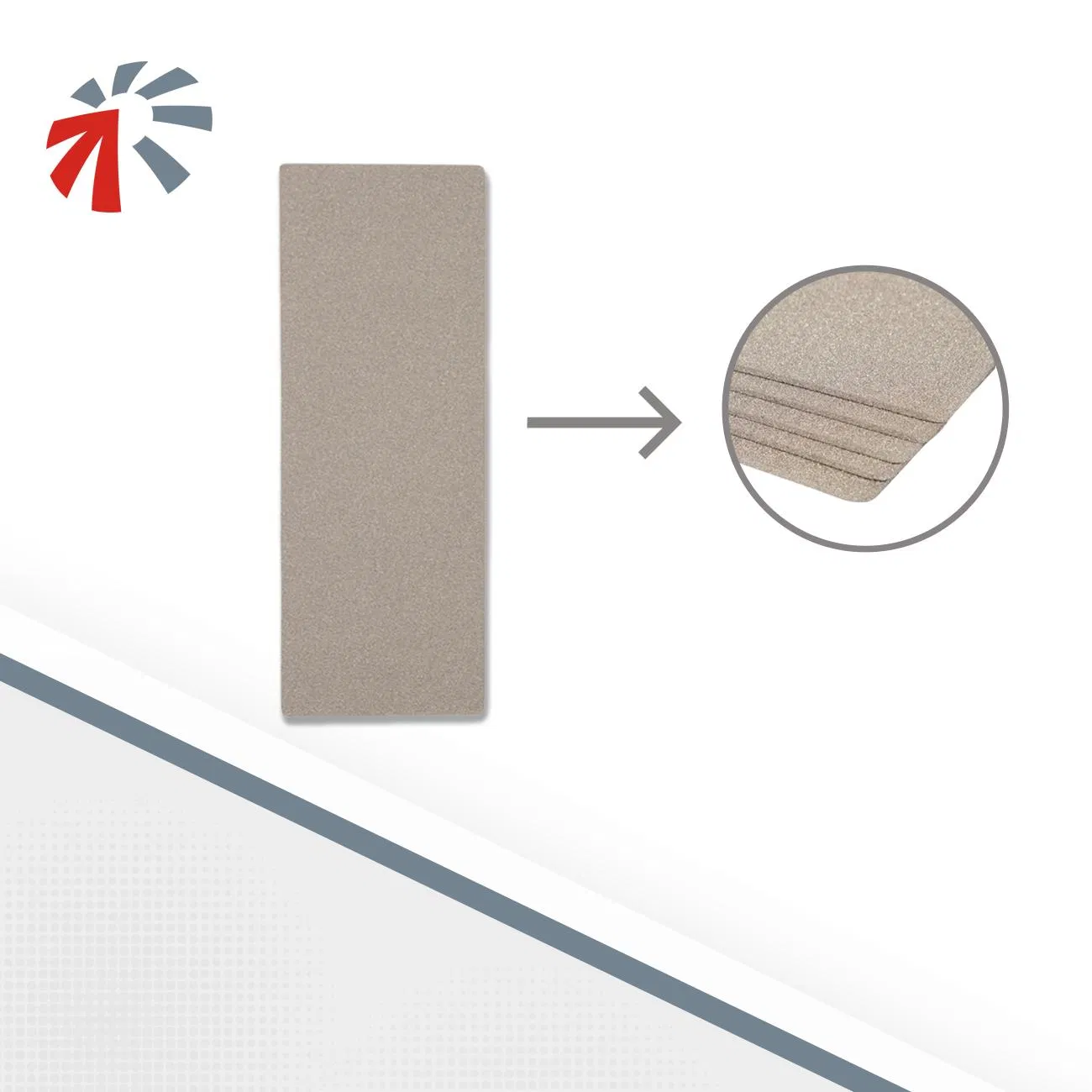

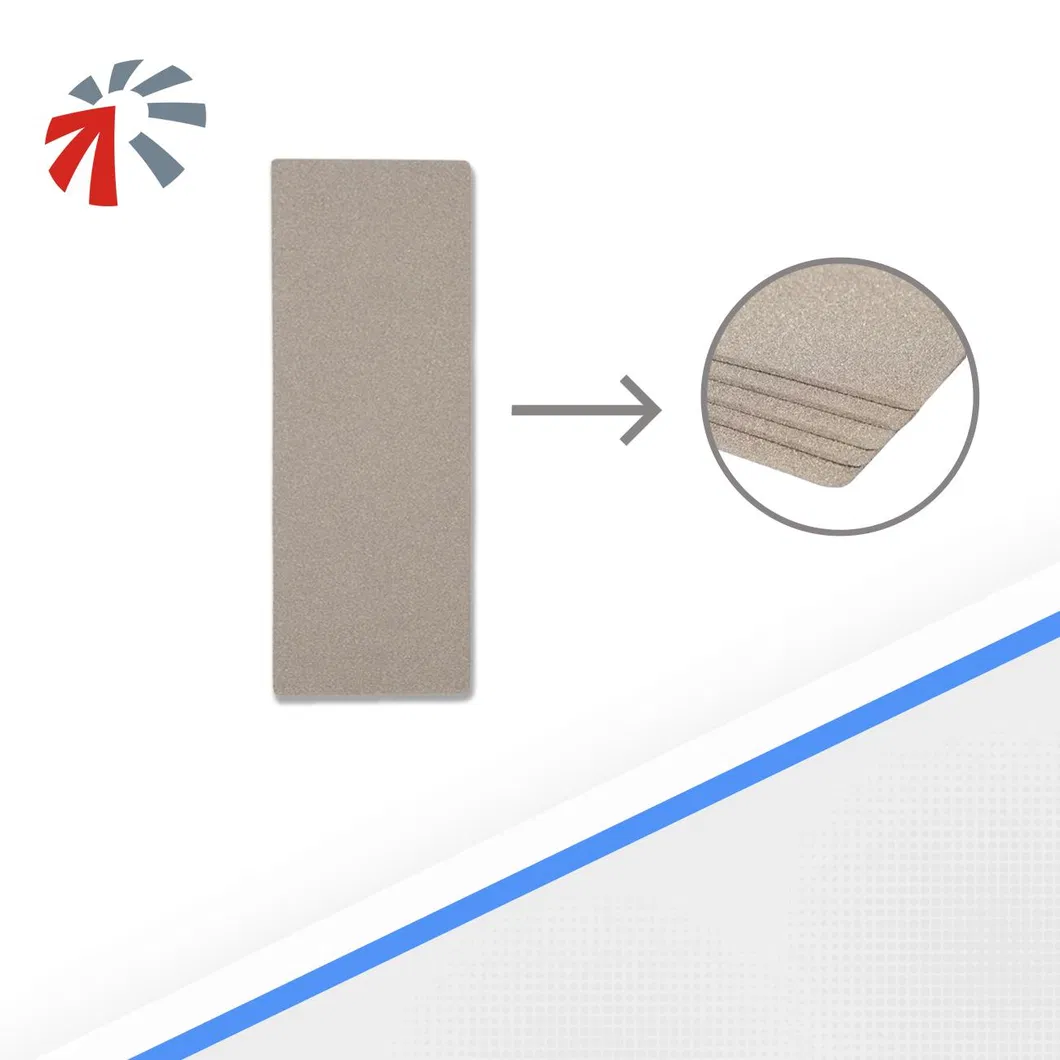

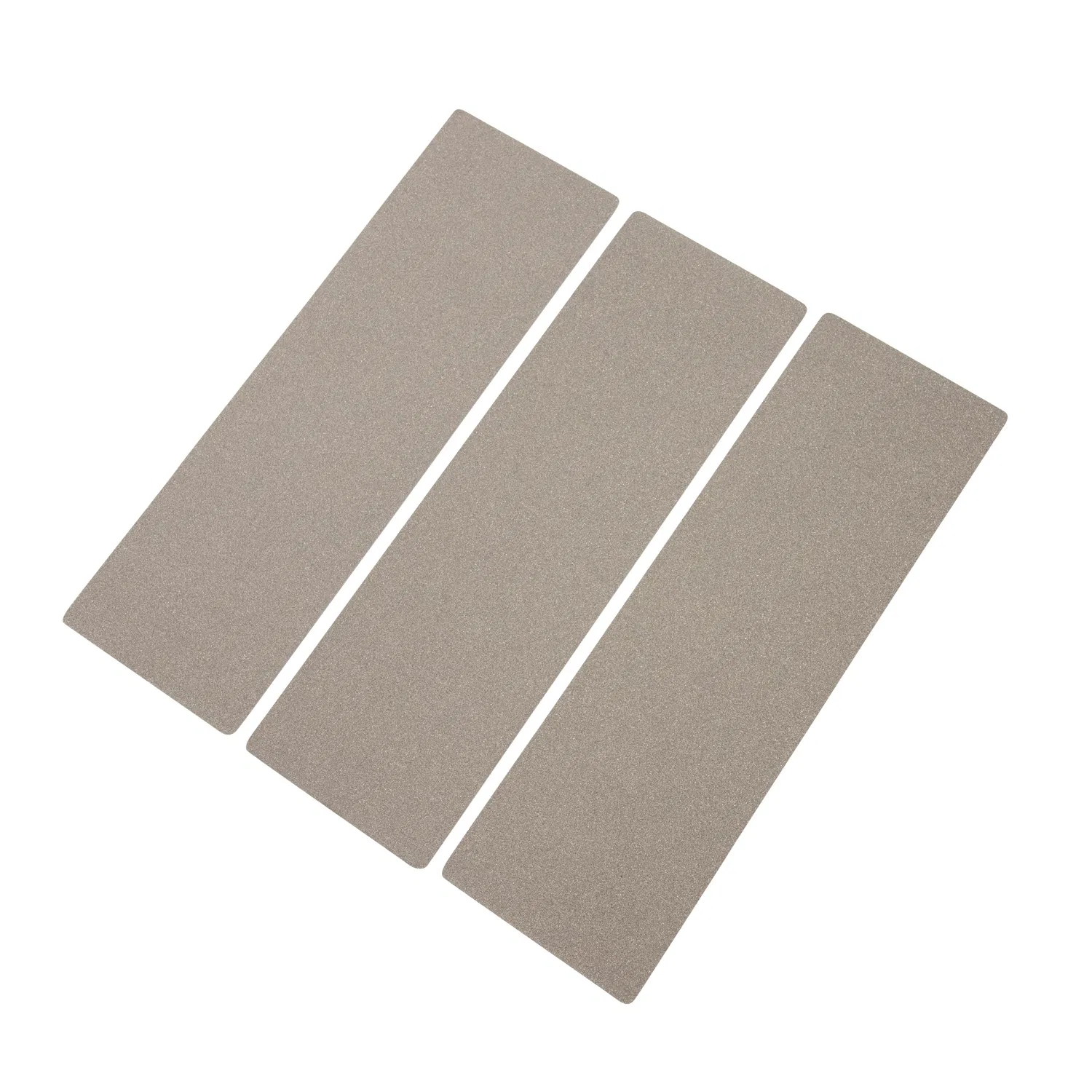

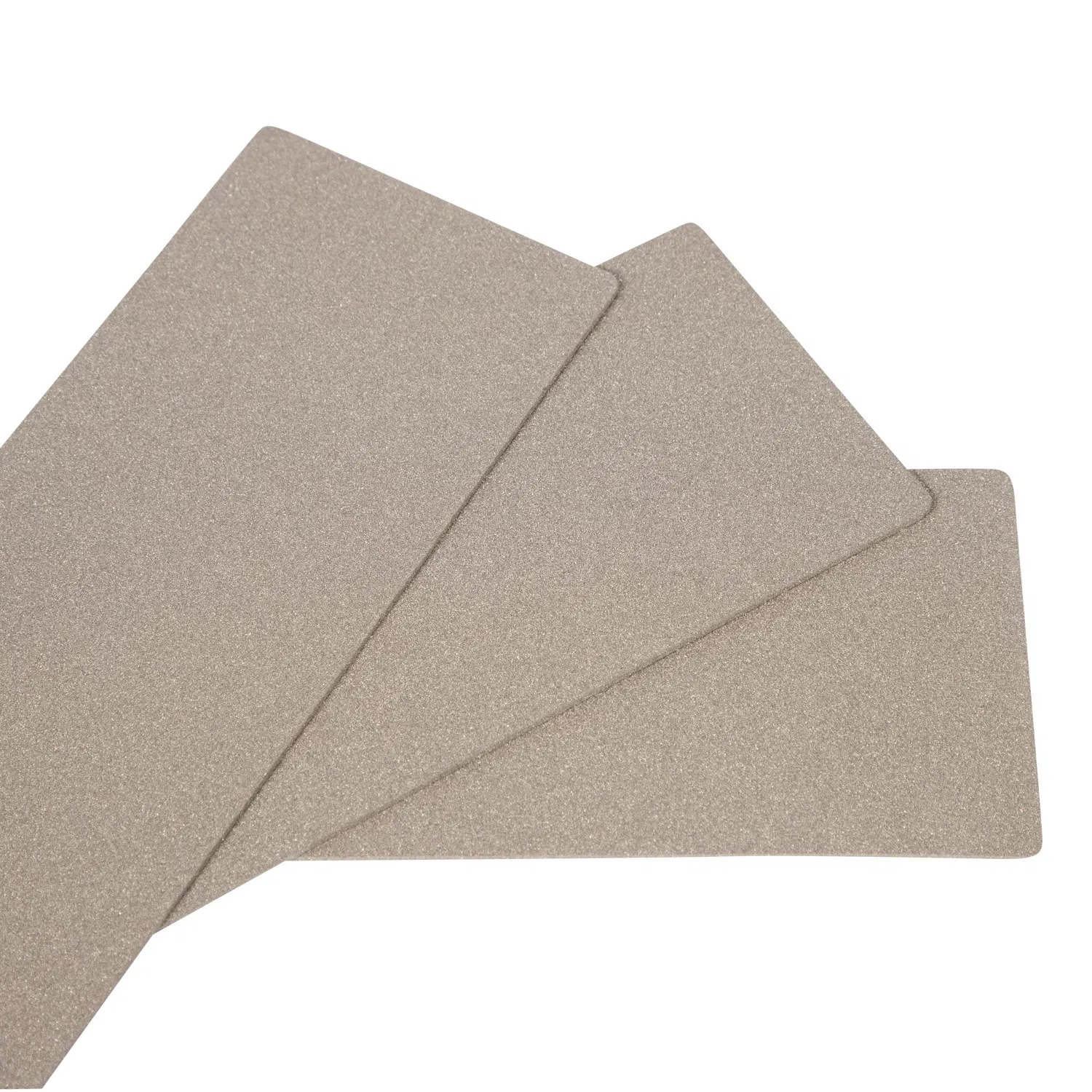

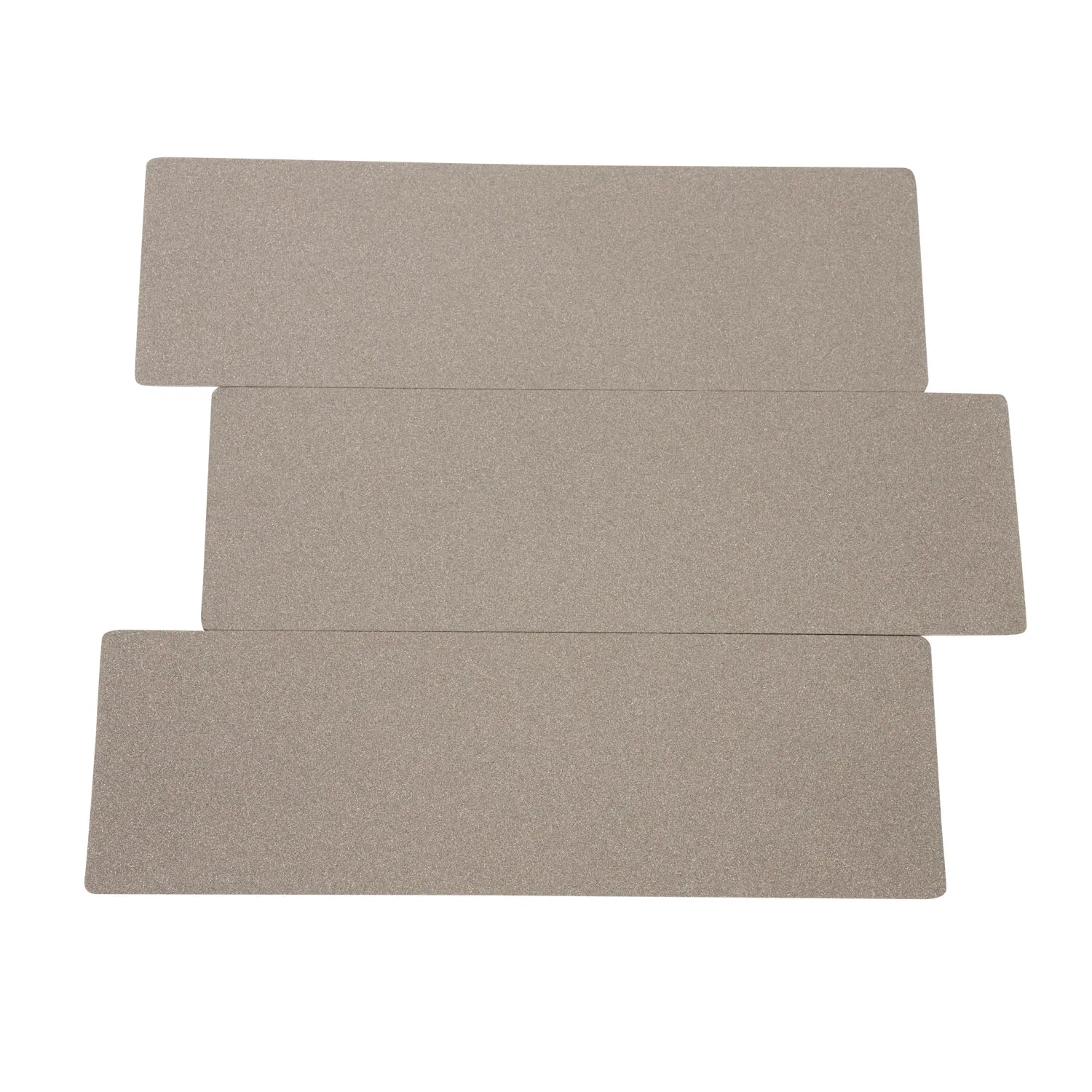

Detailed Product Photos

Technical Parameters

Processing Technology	Pressure Sintering	Material	Titanium (Ti)
Width	Up to 300 mm	Length	Up to 650 mm
Thickness	2-3 mm	Pore size	10-20um
Porosity	35%-45%	Permeability	>5.0E-04L/Pamincm²

Our Core Advantages

★ Professional R&D Team with 120+ members
★ 100+ Patented Technical Inventions
★ 50 Invention Patents & 41 Utility Models
★ High-end client base in Energy and Manufacturing

Packaging & Shipping

Frequently Asked Questions

Q: What is the primary material of the filter element? A: It is made of high-purity Sintered Titanium (Ti) powder, offering exceptional corrosion resistance and durability.

Q: Can the size and porosity be customized? A: Yes, we provide full customization for width (up to 300mm), length (up to 650mm), and porosity levels (typically 35%-45%).

Q: What is the typical delivery time for orders? A: Standard stock items take 3-7 days. For customized or out-of-stock orders, the lead time ranges from 7 to 35 days depending on the quantity.

Q: Is it suitable for high-pressure hydrogen electrolyzers? A: Absolutely. It is specifically designed as a Gas Diffusion Layer for PEM electrolyzers and fuel cells, supporting efficient gas/liquid transport.

Q: How do I maintain and clean the titanium filter? A: We recommend online backblowing with pure gas or backwashing with clean liquid. Backflowing pressure should be 1.2-1.5 times the working pressure.

Q: Do you offer samples for testing? A: Yes, we can provide samples for quality evaluation. Typically, samples are free, and you only need to cover the courier/shipping fees.
