Non-Woven Fiber Layers Making of Cross Lapper for Achcieved Required Thickness

Customization:	Available
Warranty:	1 Year
Application:	Nonwoven Bag

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.

YQ-2540-PW

Automatic Grade

Automatic

Certification

CE, ISO9001: 2000

Condition

New

After-sales Service

1 Year

Weight

4000kg

Working Width

2200-4200mm

Fiber Network Unevenness

3%-5%

Power

11.1kw

Production Capacity

800 Sets Per Year

🔍 Product Description

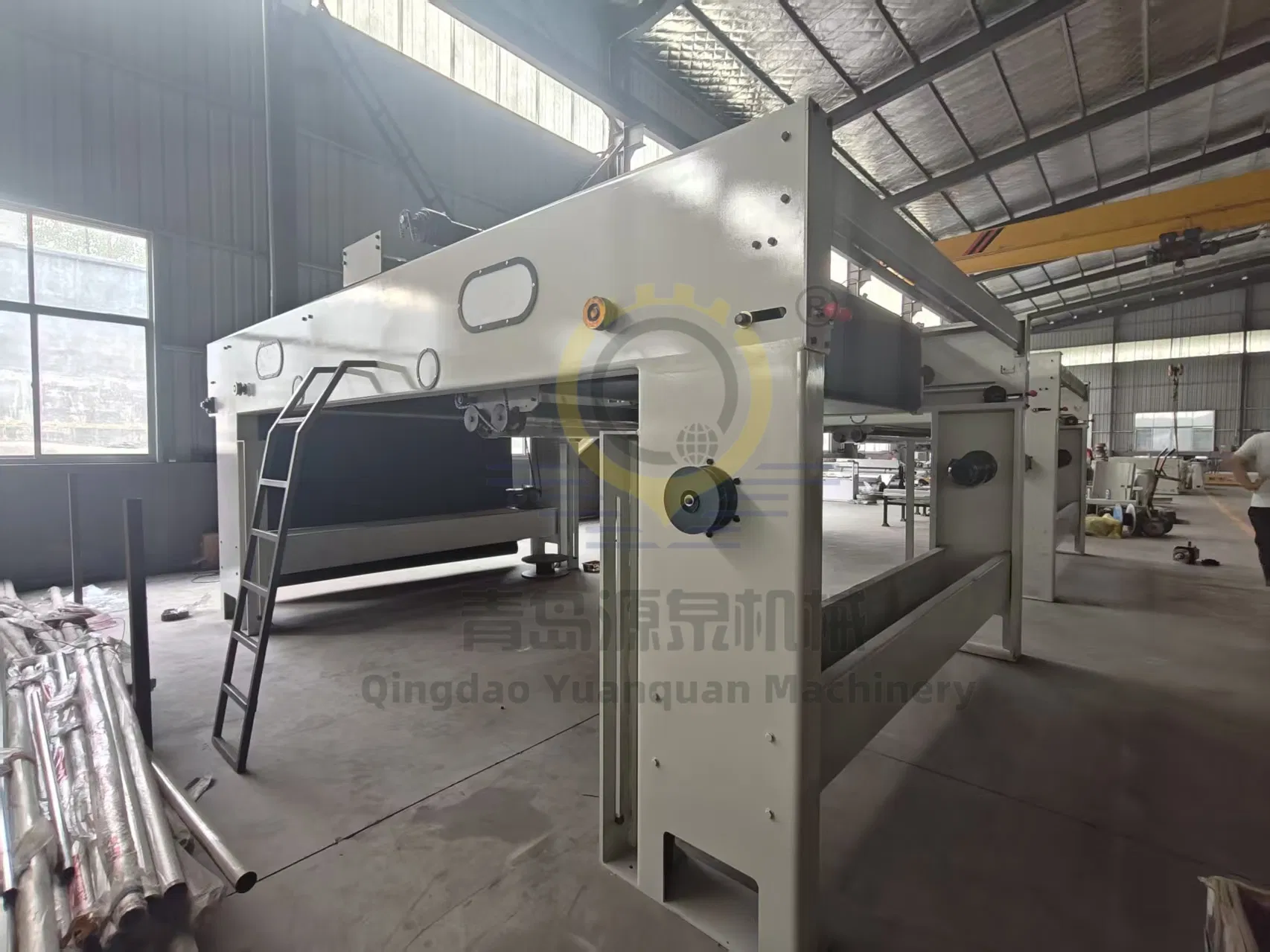

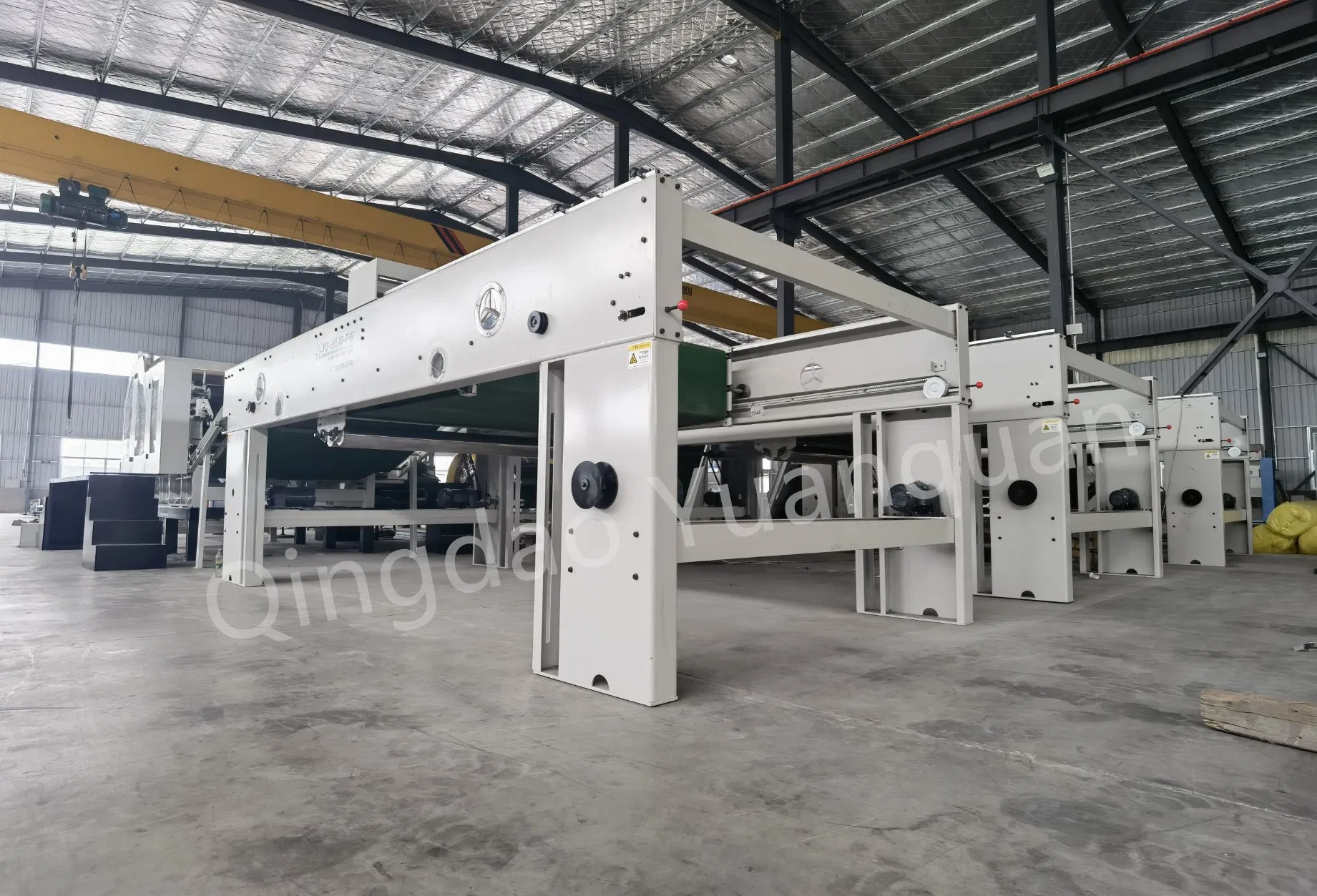

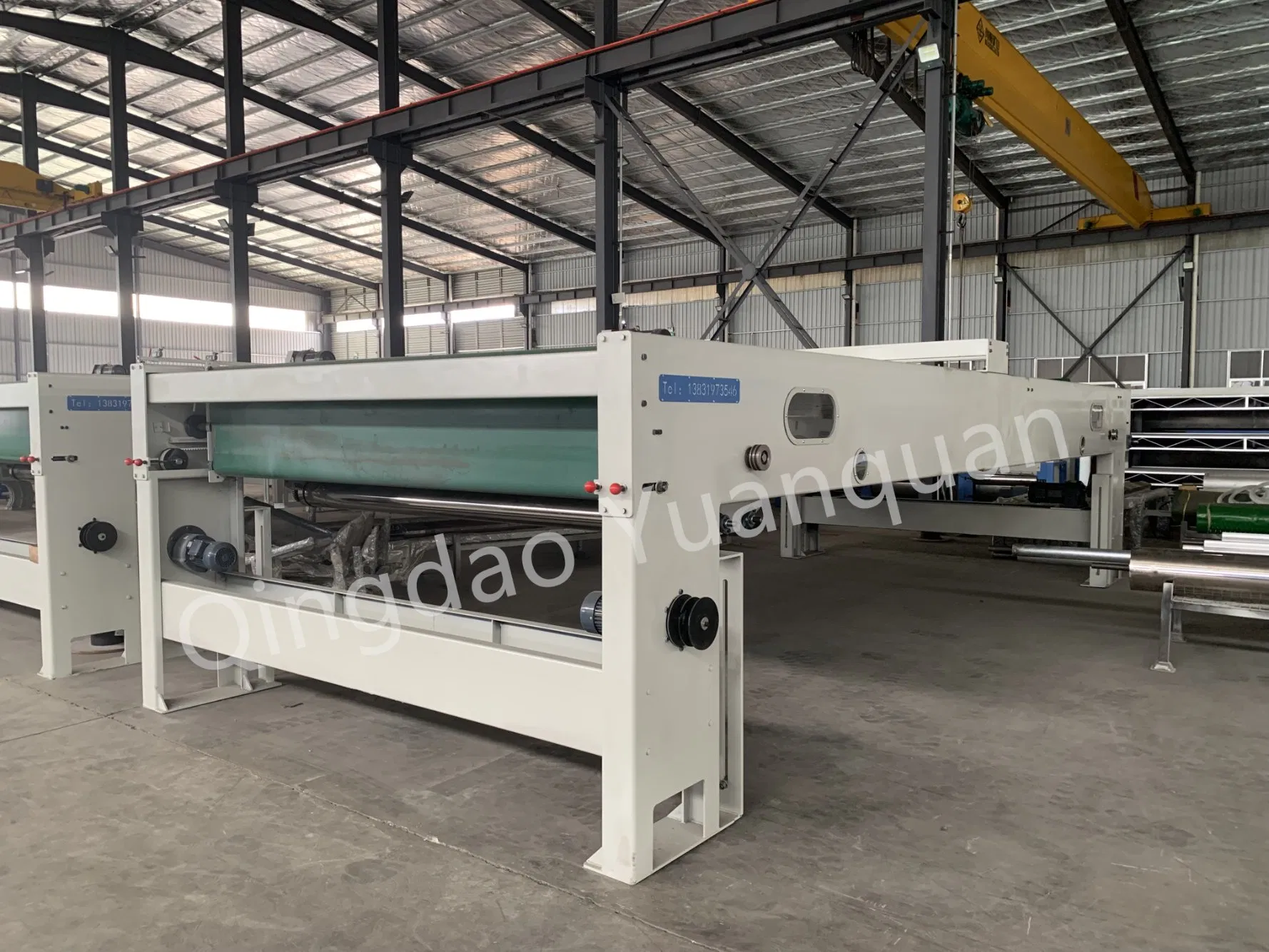

The machine is used to cross fold the carded fibers and evenly lay them into a fiber layer with a certain thickness and width. The frame of the cross lapping machine is made of 8mm steel plate. The reciprocating commutation is controlled by the frequency conversion motor, which can automatically buffer and balance the commutation, and is equipped with multi-stage speed control. The bottom curtain can be adjusted for lifting, so that the fiber layer can be evenly stacked on the bottom curtain according to the required unit gram weight for the next process.

⚙️ Main Technical Parameters

Model	YQ-2040-PW	YQ-2240-PW
Working width	2200-4200mm	2050-4200mm
Dimensions	740040002250mm	740042002250mm
Weight (Kg)	4000	3500
Fiber network unevenness	≤3%-5%	≤3%-5%
Spreading wire speed	3Vmax=0m/min3	3Vmax=0m/min3
Inclined curtain motor	2.2kw	2.2kw
Reciprocating motor (servo)	3kw	3kw
Total power	11.1kw	11.1kw

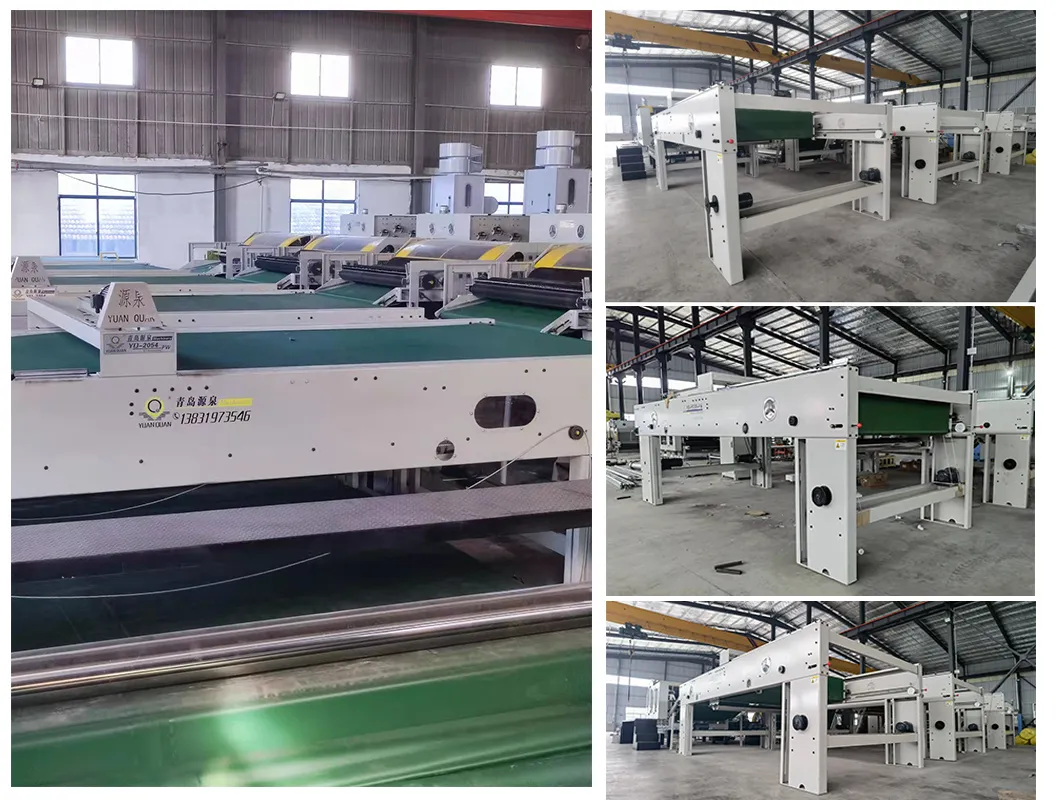

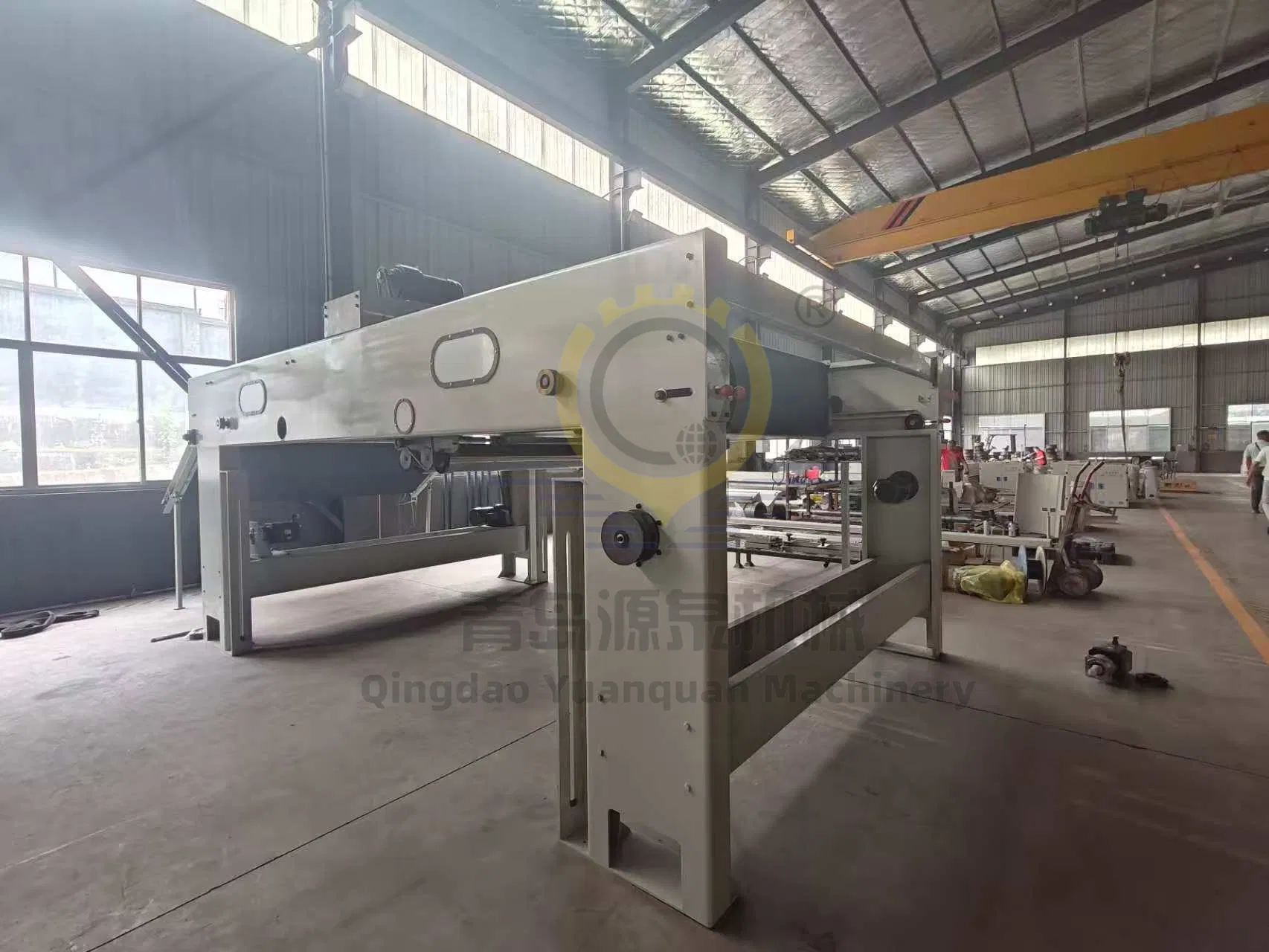

🖼️ Product Details

⭐ Main Features

Wall plate made of Q235A-6-8mm steel plate bending; frame uses 12# channel steel.
Anti-static leather middle curtain, thickened patterned leather slant curtain, and wooden curtains.
Adjustable differential speed compensation to reduce mesh stretching and ensure smooth rotation.
Drive shaft heads feature welded double-disc reinforced structures for maximum stability.
Double lifting and lowering reducer for the bottom curtain with frequency conversion speed regulation.
Reciprocating movement controlled by 3KW servo motor with photoelectric precise control.
Equipped with high-quality domestic brand bearings and Torrington rolling bearings.
Roller shaft heads are finely turned and ground with static/dynamic balancing (0.03-0.05mm control).
High-performance motors and reducers with factory-direct quality assurance.

📦 Packaging & Shipping

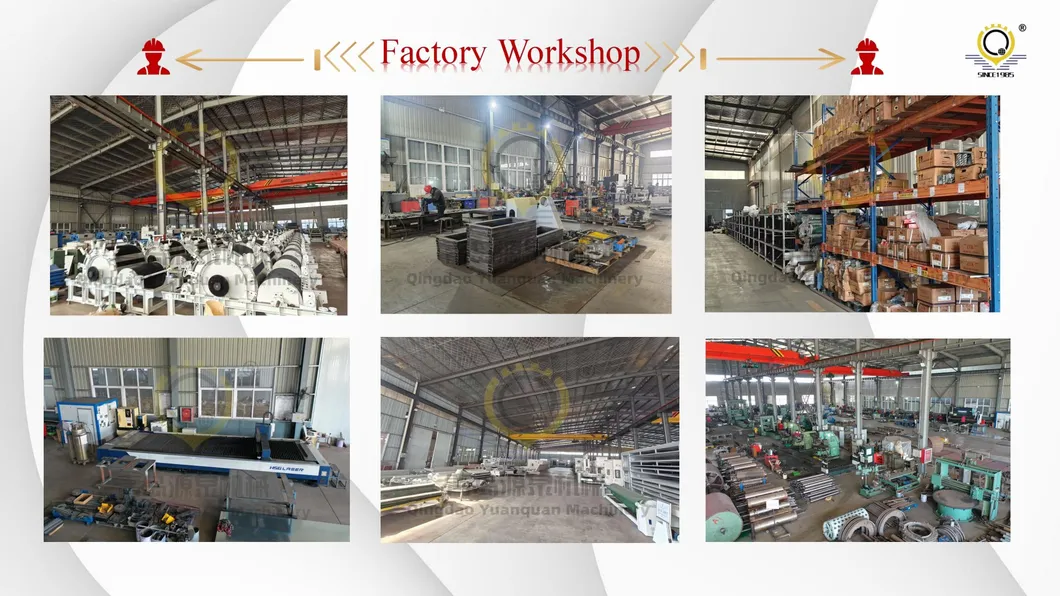

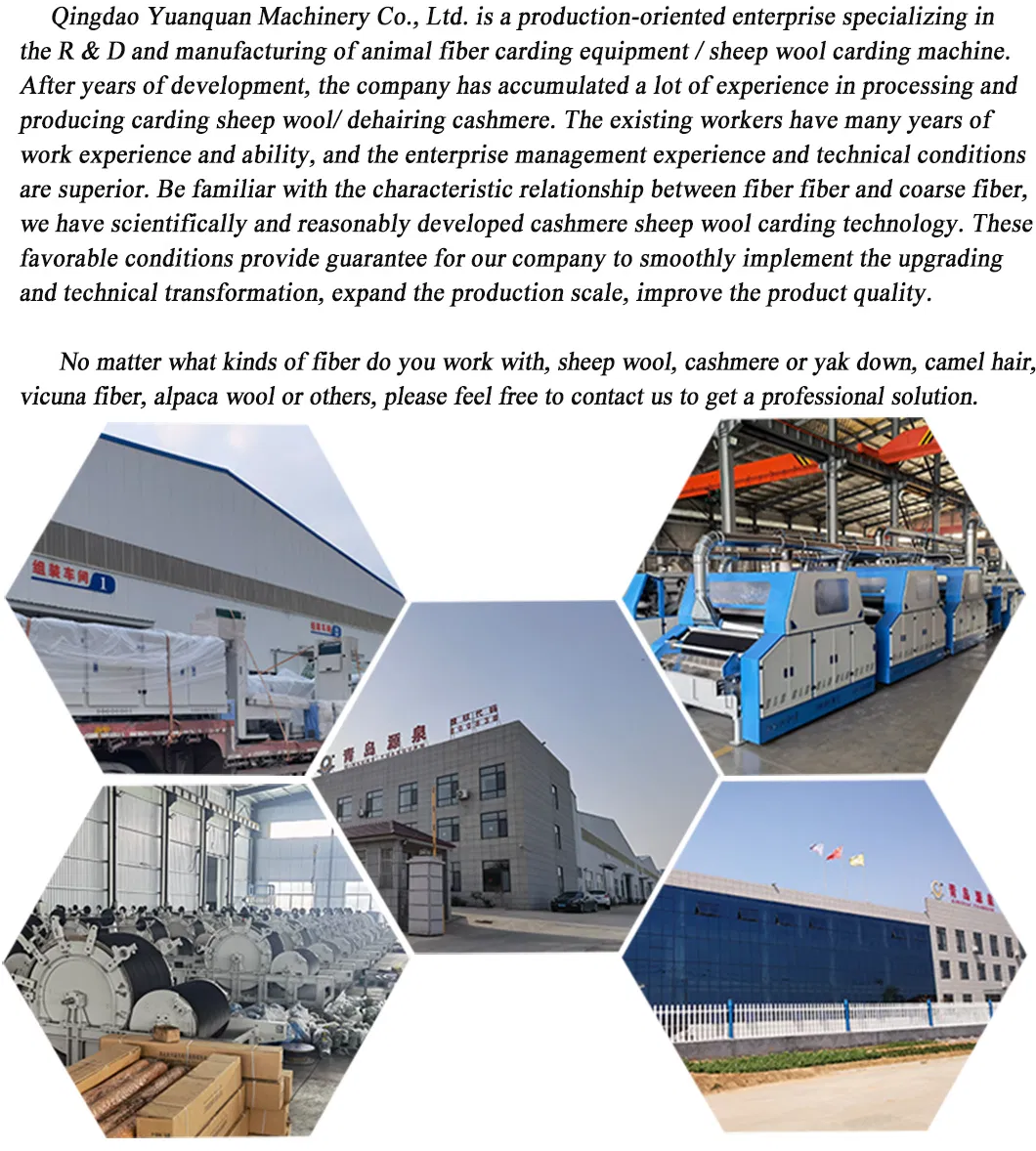

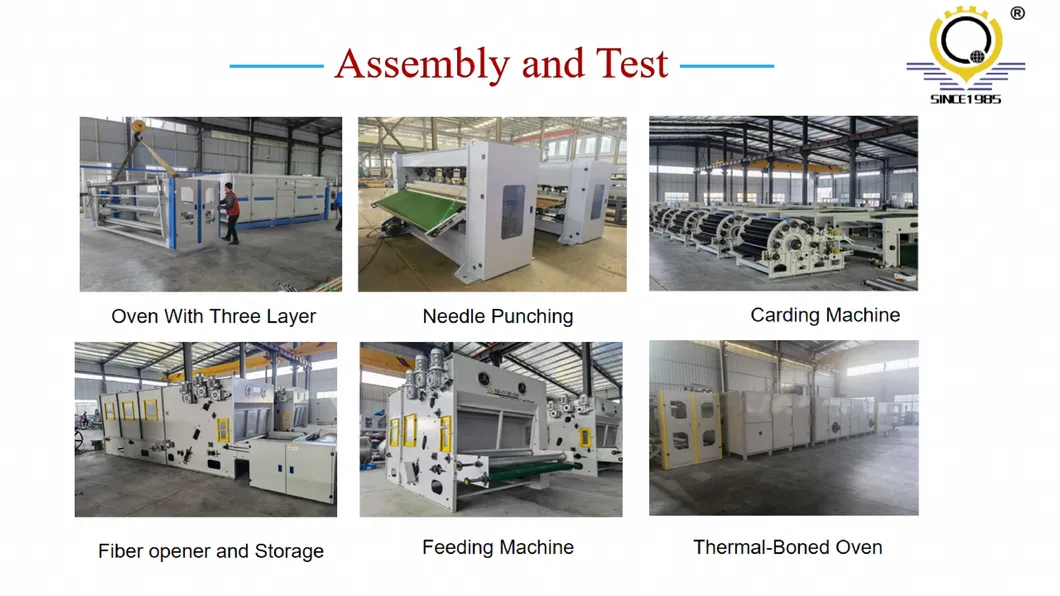

🏭 Manufacturing Strength

📜 Certifications

❓ Frequently Asked Questions

Are you a manufacturer or an agency?

We are a professional manufacturer specialized in producing textile machinery for more than 20 years. Our production capacity reaches up to 800 sets per month, ensuring we can meet large-scale industrial needs.

Is the offered price negotiable?

Yes, we offer competitive and reasonable pricing. The final price is subject to adjustment based on the specific purchasing amount and order requirements.

How do you ensure the quality of your machines?

The main subassemblies are supplied by leading global companies from Japan, South Korea, or Germany. All key components are researched, designed, and tested in-house to maintain high standards.

What kind of after-sales service do you provide?

We have a comprehensive after-sale system. Our engineers are available for overseas service to provide professional technical support and maintenance.

Can we visit your facility for an inspection?

We welcome clients to visit our facility for on-the-spot invitations and face-to-face communication to better understand our production processes and advance mutual business.

What is the thickness control mechanism of the cross lapper?

The thickness and width are achieved by cross-folding carded fibers. The bottom curtain can be adjusted for lifting, allowing the fiber layer to be stacked evenly according to the required unit gram weight.
